Emergency Rescue Ambulance
Using load-bearing boron steel reinforced body structure, high strength galvanized sheet, effectively accept the impact of impact, to achieve higher yield strength
1. Vehicle chassis modification custom.
2. We supply real Dongfeng vehicle with financial invoice of Dongfeng Motors for each vehicle.
3. We provide user's manual and spare parts catalog in English.
4. Spare parts list marked with exact part numbers help you to purchase correct parts in futural maintenance.
5. We always provide spare parts in the life cycle of the vehicles.
6. One-to-one remote guidance from engineer, help to do after-sales troubleshooting.
Using load-bearing boron steel reinforced body structure, high strength galvanized sheet, effectively accept the impact of impact, to achieve higher yield strength; Streamlined appearance, driving can effectively guide the surrounding airflow, reduce air resistance and fuel consumption, help to improve the stability of the car and the cooling conditions of the engine, the body has a good ventilation.

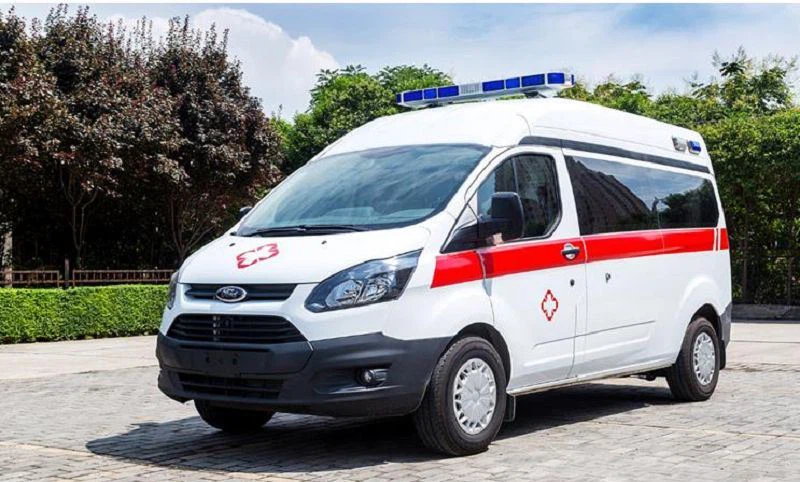

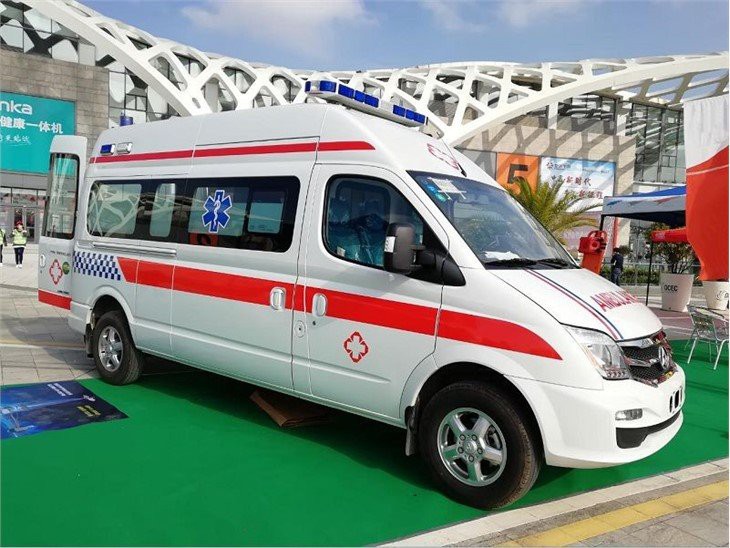

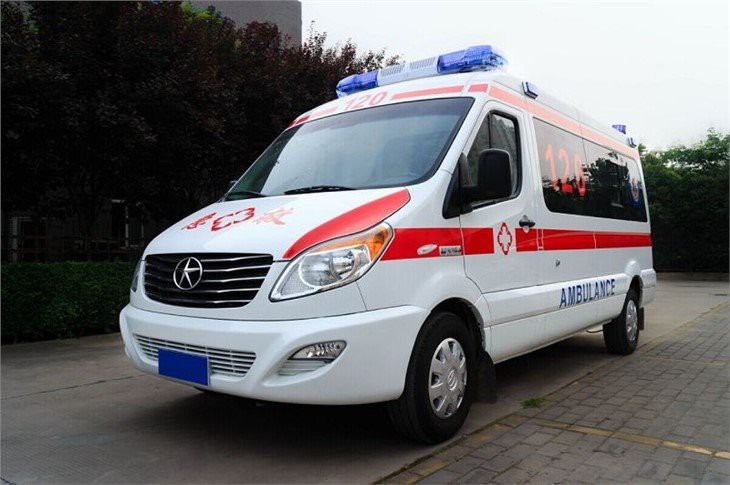

Transport type, ICU type ambulance are both available, minivan brand options as FORD TRANSIT, FOTON, MAXUS，Golden Dragon， IVECO， JINBEI HIACE etc. You also can choose to add Negative pressure system for COVID-19.
As followed is reference specifications, more details and customized items, please get in touch with your service manager to confirm.
A | A/C-Heater System |
1 | Vehicle-mounted original air conditioner in driver's cab |
2 | Vehicle-mounted original air conditioner in Patient's compartment |
3 | Heater mounted in Patient's compartment |
B | Power Supply and Lighting System |
1 | 1000W Sine wave inverter |
2 | 100AH backup battery（When the parking power is not available, it can be used for 1.2h for 1000W electric equipment ） |
3 | 15m mobile cables |
4 | IP6 waterproof power outlet on the left side of bodywork |
5 | 12V intelligent charger mounted in patient’s compartment, easy to be operated by doctors |
6 | 220V AC charge mounted in patient’s compartment, easy to be operated by doctors |
7 | 12V delay Ultraviolet radiation disinfector light |
8 | 220V AC power socket in driver’s compartment |
9 | Courtesy lamp at the back door(Rear lamp, can be used when the stretcher up to the vehicle at night time) |
10 | LED illumination light mounted at the top of Patient's compartment, can be adjusted the brightness of the patient’s compartment according to the patient’s condition. |
11 | Multi-functional control panel(Centralized control of the modified circuit system, can directly display the number of battery voltage, intuitive and convenient operation. Improve the safety of the whole circuit system, maintenance, replacement insurance is convenient and fast, easy to operate) |
C | Emergency alarm system |
1 | Long strips of ultra-thin Blue flashing alarm LED lamps in the front of vehicle outside roof |
2 | Beeper with 100W speaker can adjust the volume. working current ≤10A, output resistance ≤8Ω.working environment -40°——+50° |
3 | Alarm, warning light, Intercom double control handle (supported USB,TF function,MP3 audio file can be used. the external and internal talkback functions of the cab and the medical cabin can be supported)mounted at driver’s cab and patient cab. |
4 | One blue flashing light at the left and right side of the vehicle，white light at both side of the vehicle’s back |
5 | The rear tail of the roof is equipped with a molded fiberglass rear tail, which can effectively guide the wind resistance and increase the stability of the vehicle at high speed. Four LED blue flashing lights and one LED white field lighting lamp are installed on the rear tail of the roof. |

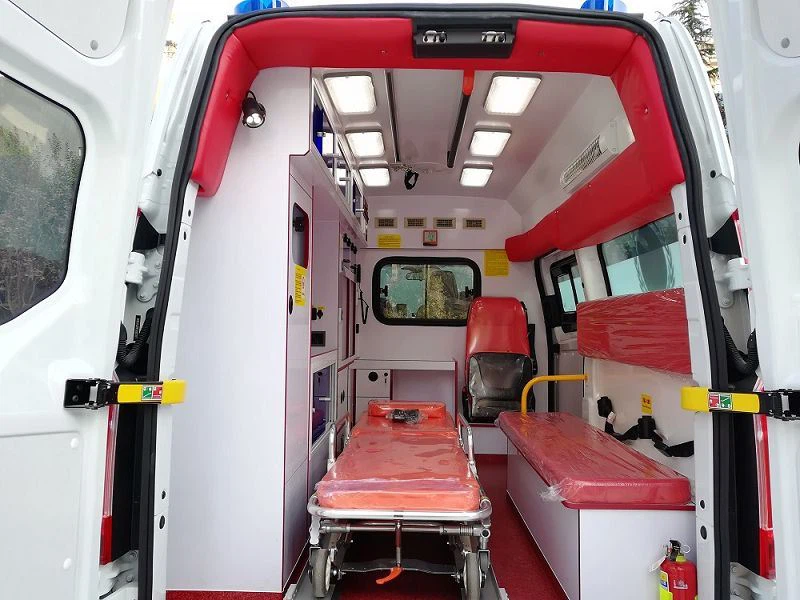

D | Patient's compartment |
1 | Patient’s compartment high-molecular environment-protection flame-retardant material interior top |
2 | The side wall of patient’s compartment of vehicle is decorated with polymer, environmental protection and flame retardant material. |
3 | Window frame, middle door, tail door white polymer environmental protection flame retardant interior decoration |
4 | Patient’s compartment floor with imported medical LG acid, alkali, fire, anti-skid, anti-static blue or red floor leather |
5 | perimeter embossing edge wrapping of Patient's compartment , dust-proof, anti-skidding, washable |
6 | Compartment wall with PVC panel between driver's cab and Patient's compartment, a tempered glass window in wall to make observation |
7 | Negative pressure system installed in patient cabin |
8 | A foldable doctor seat covered with red(or blue)leather, mounted to floor near to compartment wall |
9 | Patient’s compartment left front medicine storage cabinet (using high-molecular environment-friendly material, convenient for small medicine bottle to be stored) |
10 | Three drawer cabinets behind the partition wall, with 3 round drawers holding hands |
11 | Install a set of item storage cabinets behind the partition wall of the patient’s compartment |
12 | Oxygen cylinder fixing cabinet is installed at the left wheel hub of the patient’s compartment |
13 | Medical cabin left oxygen cabinet in front of polymer environmental protection flame retardant material medical device cabinet (table edge 3cm edge, upper acrylic push-pull window).Arrangement reasonable, It is convenient for medical personnel to access the necessary medicines, simple medical devices and other necessary first-aid medical facilities, and is stable and reliable. |
14 | Installation of push-pull window hanging cabinets at the top of the left |
15 | 2 sets German standard oxygen terminal and power socket mounted on the left side window roof of the patient compartment |
16 | Oxygen bottle (10L) ,mounted in left side of vehicle, Oxygen flow and pressure controller, the arrangement of oxygen pipeline is reasonable, and the control device is convenient for medical personnel to operate and monitor. |
17 | Special oxygen suction (humidification) device |
18 | Two-person high-molecular environment-friendly material cabinet-type bed with safety belt is installed on the right side of the medical cabin, and the surface of the seat cushion and the backrest is coated with leather |
19 | Installation of safe handrail in cabinet bed |
20 | Sliding infusion bottle holder at the top of the medical cabin is reliable, easy to operate, reliable and clamped, and the bottle will not shake while driving. |
21 | Antibacterial safety handrails are installed on the top of the patient’s compartment |
22 | Auto-loading stretcher mounted in patient’s compartment(The main body adopt to the high-quality aluminum alloy materials. the backrest is supported by an adjusting structure, the backrest can be adjusted in the range of 60 degrees, a patient is provided with a safety belt, the fixing between the patient and the stretcher is facilitated, and the special fixing device for the ambulance is safe and reliable) |
23 | Loading stretcher guard plate (or optional stretcher platform) (auto-load stretcher can going to patient’s compartment easily with the patient. Keep the stretcher safe and steady. |
24 | Scoop stretcher(By using the separated structure, the length of the stretcher can be adjusted at will according to the body length of the patient. A hinged clutch device can be arranged in the middle of the two ends of the stretcher, which can separate the stretcher into left and right parts. Without moving the patient, the patient can be quickly placed in the stretcher and transported to the hospital bed or operating table.) |
25 | Stainless steel dirt bucket |
27 | back-bar guard |
28 | Fire extinguisher, can be removed from the holder easily. |
29 | Black glass-film on the left side of Patient's compartment, and 2/3 frosted film on the right side |
30 | Customize the red / blue reflective belt of the body waist according to the needs of the customer, in accordance with the national regulations. |
31 | Stretcher guide plate and Stainless steel plate at the bottom of stretcher |
