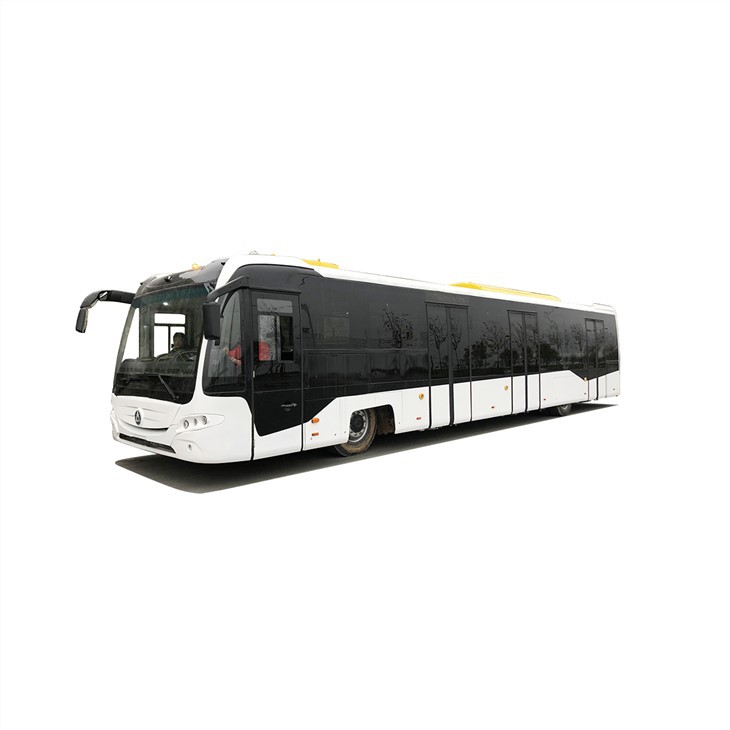

Pure Electric Airport Bus
It is customized pure electric airport shuttle bus, you can find the main features of the bus as followed.
1. Vehicle chassis modification custom.
2. We supply real Dongfeng vehicle with financial invoice of Dongfeng Motors for each vehicle.
3. We provide user's manual and spare parts catalog in English.
4. Spare parts list marked with exact part numbers help you to purchase correct parts in futural maintenance.
5. We always provide spare parts in the life cycle of the vehicles.
6. One-to-one remote guidance from engineer, help to do after-sales troubleshooting.
It is customized pure electric airport shuttle bus, you can find the main features of the bus as followed.
Running time: satisfy 17-20 hours real running time everyday at airport.
Battery performance: 303kwh lithium iron phosphate battery
Battery charging time: double charging , 1 hour to be full
Battery life: 8 years
Bus chassis technology original: It is updated on the electric based on BF30
Body: body uses lightweight aluminum alloy technology, 60% lighter than traditional bus body, life is longer to 20 years.
Modern style of interior trim, with flight cabin ‘s interior trim
Humanized design of handrail
Passenger area and driving area are separated and use intelligent environment control system
Install air clean facility to sterilize and dust to remove odors
Defrost system is imported from Germany
Chassis technology is original from design of BF30 chassis, safe and comfortable.
Inter space layout is scientific and reasonable.
3 huge air compression tank ensure the needs of low speeds and frequent go-stop request at airport.
Specifications item | Data | Specifications item | Data |
Overall dimension（mm) | 13900X3000X3070 | Total mass（kg) | 20400 |
Wheelbase （mm) | 7100 | passenger door structure / quantity | Double pneumatic outer swing door/6 |
front/rear overhang（mm) | 2900/3900 | passenger seats | 6+2 |
front/rear tread（mm） | 2340/2333 | body | aluminium alloy, unloaded body |
Top speed（km/h） | 50 | driving area air condition | electrical, cool /warm |
Specifications item | Data | Specifications item | Data |
Chassis model | YLHBF30 | Suspension | air suspension, with two-side roll |
Driving electrical motor | 165KW permanent magnet, water cooling, front position | front/rear tire | front :385/55R22.5，rear:11R22.5 |
Power battery | lithium iron phosphate battery, roof position | steering | hydraulic power assisted |
Rated power | 303kwh | continuous operating time | more than 18 hours / day |
Charging time | Double input, 400A, one hour | passenger area air condition | electrical, roof position, cool/warm |
Advanced technology with economic cost, It is your best helper of airport transportation.
