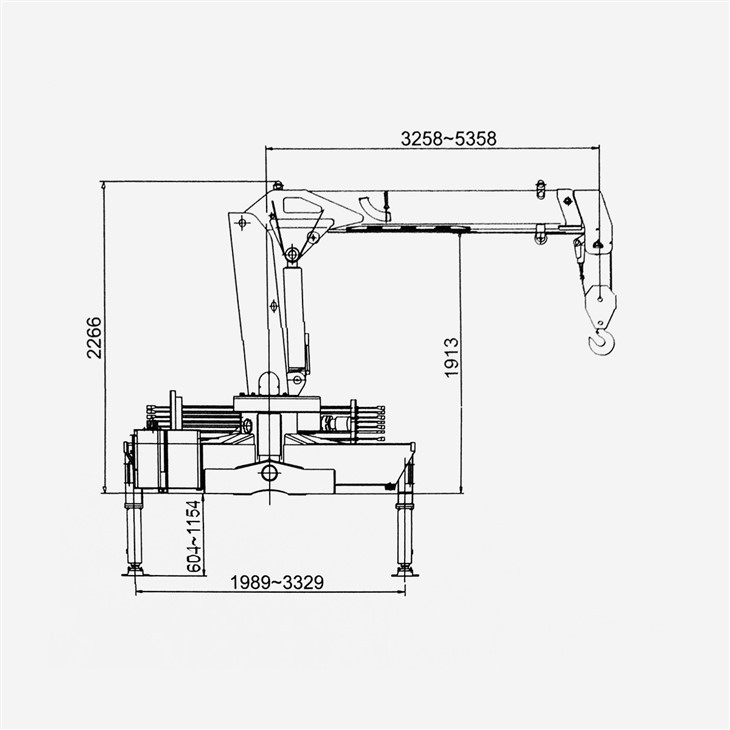

3.2 Tons Truck Mounted Telescope Crane
1. Vehicle chassis modification custom.
2. We supply real Dongfeng vehicle with financial invoice of Dongfeng Motors for each vehicle.
3. We provide user's manual and spare parts catalog in English.
4. Spare parts list marked with exact part numbers help you to purchase correct parts in futural maintenance.
5. We always provide spare parts in the life cycle of the vehicles.
6. One-to-one remote guidance from engineer, help to do after-sales troubleshooting.
| Item | Unit | TC3.2-2 | TC3.2-3 |
| Max.lifting capacity | kg | 3200 | 3200 |
| Max.lifting moment | T.M | 6.8 | 6.8 |
| recommended power | kw | 14 | 14 |
| Max oilflow of hydraulic system | L/MIN | 25 | 25 |
| max pressure of hydraulic system | Mpa | 20 | 20 |
| oil tank capacity | L | 30 | 30 |
| crane weight | kg | 1105 | 1229 |
| installation space | mm | 850 | 850 |
| rotation angle | ° | All rotation | |
Rated lifting load
| TC3.2-2 | ||
| working radius(M) | Max lifted load(kg) of different arm lengths | |
| 3.3m | 5.50m | |
| 2.10 | 3200 | 2000 |
| 3.00 | 1850 | 1850 |
| 5.35 | 950 | |
| TC3.2-3 | |||
| working radius(M) | Max lifted load(kg) of different arm lengths | ||
| 3.3m | 5.50m | 7.73m | |
| 2.10 | 3200 | 2000 | 1620 |
| 3.00 | 1800 | 1850 | 1300 |
| 4.50 | 1250 | 860 | |
| 6.50 | 680 | ||
| 7.56 | 500 | ||
