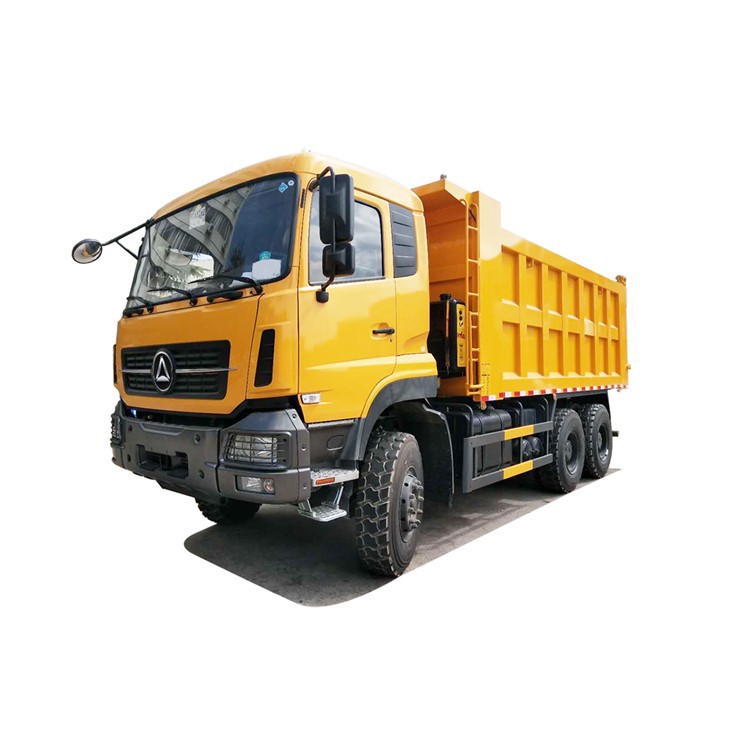

6x4 Cummins SCR 340hp Dump Truck
· For dump trucks equipped with Chinese brand axle units with a matching gear ratio of 5.73, only a 12-speed overdrive gearbox can be selected. At this moment, the maximum speed of the vehicle is 83 km/h, and the maximum speed of the direct gear is 48-66 km/h. The maximum speed within the engine's maximum torque range is 63 km/h, while the maximum speed in direct gear is 38-51 km/h.
· The dump truck equipped with the Benz brand axle that has a matching gear ratio of 5.26 is standardly equipped with a direct gear 12-speed transmission. At this point, the maximum speed of the vehicle is 78 km/h, and the maximum speed within the engine's maximum torque range is 45-62 km/h. Alternatively, you can choose a 12-speed overdrive transmission paired with a Benz axle with a 5.921 gear ratio.
· This vehicle is suitable for use in construction sites, construction areas, as well as in mining and quarrying sites. The vehicle is designed for high-load capacity and is suitable for short-distance, high-intensity transportation tasks.
· The heavy spring suspension is purpose-designed for construction use. Vital components are well-protected, for uptime and productivity.
· When more payload translates to improved productivity, the 32-tonne bogie helps you maximize your capacity.
· The sturdy appearance can withstand harsh usage. The distinctive heavy-duty bumper is made of 3mm high-grade steel, which can protect the front of your vehicle from damage caused by dents and broken headlights in any terrain.
· Excellent direct vision are provided. Cameras can be selected for the front, rear and both sides of the cab to ensure a safe and diverse construction driving experience.
· The standard tire for this truck is 315/80R22.5. You can also choose 12.00R20 tires.
| Project | CR6441S9.5P3412MO/5.73-3652 | CR6441S9.5P3412MD/5.263-3854 | CR6441S9.5P3412MD/5.263-4058 | ||||
| Chassis Dimensions (mm) |
Overall chassis length | 8050 | 8250 | 8550 | |||
| Cab width | 2550 | ||||||
| Cab height (unladen) | 3210 | ||||||
| Wheel base | 3650+1350 | 3800+1450 | 4050+1450 | ||||
| Front overhang | 1500 | ||||||
| Rear overhang | 1550 | 1500 | 1550 | ||||
| Frame (mm) | 300×90×(8+8) | 300×90×(8+8+6) | |||||
| Tipper box | Dimensions (mm) | 5200×2300×1200 | 5200×2350×1500 | 5400×2350×1200 | 5400×2350×1500 | 5800×2300×1200 | 5800×2300×1500 |
| Volume (m³) | 14.352 | 18.33 | 15.228 | 19.035 | 16.008 | 20.01 | |
| Lifting method | Front bumper | ||||||
| Material | Q355 Steel / B700 High-strength steel / NM450 Wear-resistant steel | ||||||
| Loading capacity (kg) | ≤ 30000 | ||||||
| Cab | Model | C-RES | |||||
| Feature | Rest cab, forward control type, standard roof, new face, all welded steel cab, front and rear mechanical cab suspension, adjustable driver's seat, air conditioning system, electrical windows, central lock. | ||||||
| Engine | Model | Cummins ISL9.5-340E53A | |||||
| Emission level | Euro 3 - Euro 5 | ||||||
| Max.power | 250KW | ||||||
| Max.torque | 1610N·m at 1100-1700rpm | ||||||
| Number of cylinders | 6 | ||||||
| Displacement (lit) | 9.5 | ||||||
| System | High pressure common rail fuel system,water cooled,turbocharged,after cooled,cold start. | ||||||
| Clutch | Type | Hydraulic control with air booster, pushing | |||||
| Plate's diameter | ¢430mm | ||||||
| Gear Box | Type | Fast 12JSD180TA | Fast 12JSD180T | ||||
| No. of gears | 12 forward gears & 2 reverse, synchronization | 12 forward gears & 2 reverse, synchronization | |||||
| Gear ratios | Forward: 12.098, 9.406, 7.313, 5.711, 4.462, 3.476, 2.712, 2.108, 1.639, 1.28, 1, 0.779 Reverse: 11.572, 2.594 | Forward: 15.53, 12.08, 9.39, 7.33, 5.73, 4.46, 3.48, 2.71, 2.10, 1.64, 1.28, 1.0 Reverse: 14.86, 3.33 |
|||||
| Brake System | Full air brake system, split pneumatic circuit, parking spring brake acting on rear axles, exhaust brake,ABS. | ||||||
| Front Axle | Type | Elliot type, I beam section | |||||
| Load capacity (kg) | 9000 | ||||||
| Rear Axle | Type | China brand hub reduction, tandem axle, with axle lock and wheel lock, ratio 5.73 | Benz brand hub reduction, tandem axle, with axle lock and wheel lock, ratio 5.263 |
||||
| Load capacity (kg) | 16000 × 2 | ||||||
| Tyres | 315/80R22.5 | ||||||
| Suspension | Front | Leaf spring with shock absorber | |||||
| Rear | Leaf spring,equalizing type suspension | ||||||
| Battery | Voltage (V) | 24 | |||||
| Battery capacity (A.h) | 165×2 | ||||||
| Fuel tank | Type | Steel fuel tank, with lockable cap | |||||
| Capacity | 350 lit | ||||||
