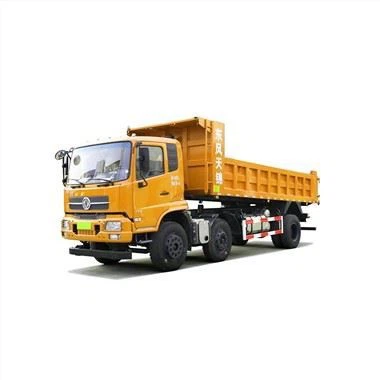

6×2T Euro V 6.7L Engine 27 Tons Dump Truck
| 62TGV32SD6.7P245M9D | 62TGV32SD6.7P270M9D | 62TGV32SD6.7P285M9D | 62TGV32SD6.7P300M9D | |
| Cabin | ||||
| Driver's seat | Air shock absorbing driver's seat | Air shock absorbing driver's seat | Air shock absorbing driver's seat | Air shock absorbing driver's seat |
| Passenger seat | Passenger seat back angle are adjustable | Passenger seat back angle are adjustable | Passenger seat back angle are adjustable | Passenger seat back angle are adjustable |
| Bed | One bed width 600mm | One bed width 600mm | One bed width 600mm | One bed width 600mm |
| Feature | Central locking, Power window, FM, A/C | Central locking, Power window, FM, A/C | Central locking, Power window, FM, A/C | Central locking, Power window, FM, A/C |
| Engine | ||||
| Brand & Model | Cummins ISD245-50 | Cummins ISD270-50 | Cummins ISD285-50 | Cummins ISD300-50 |
| Type | CRDI, 6 Cylinder | CRDI, 6 Cylinder | CRDI, 6 Cylinder | CRDI, 6 Cylinder |
| Cylinder volume (liter) | 6.7 | 6.7 | 6.7 | 6.7 |
| Max. power (PS/rpm) | 245/ 2,500 | 270/ 2,500 | 285/ 2,500 | 300/ 2,500 |
| Max. torque (Nm/rpm) | 950/ 1,800 | 970/ 1,800 | 1020/ 1,800 | 1100/ 1,800 |
| Transmission | ||||
| Model | 9JS119T-B | 9JS119T-B | 9JS119T-B | 9JS119T-B |
| Type | Manual | Manual | Manual | Manual |
| Total gears | 9-speed forward +1-speed reverse | 9-speed forward +1-speed reverse | 9-speed forward +1-speed reverse | 9-speed forward +1-speed reverse |
| 1st gear ratio gear ratio | 12.113/ 1 | 12.113/ 1 | 12.113/ 1 | 12.113/ 1 |
| Front axle | ||||
| Capacity (kg) | 7,000 | 7,000 | 7,000 | 7,000 |
| Design Max. Capacity (kg) | 8,400 | 8,400 | 8,400 | 8,400 |
| Feature | Steering Axle | Steering Axle | Steering Axle | Steering Axle |
| Trailing tag axle | ||||
| Capacity (kg) | 9,000 | 9,000 | 9,000 | 9,000 |
| Design Max. Capacity (kg) | 10,000 | 10,000 | 10,000 | 10,000 |
| Feature | Lifting Axle | Lifting Axle | Lifting Axle | Lifting Axle |
| Rear axle | ||||
| Capacity (kg) | 16,000 | 16,000 | 13,000 | 13,000 |
| Design Max. Capacity (kg) | 18,000 | 18,000 | 16,000 | 16,000 |
| Final gear ratio | 4.875 | 4.875 | 4.875 | 4.875 |
| Diff. lock | Inter-wheel | Inter-wheel | Inter-wheel | Inter-wheel |
| Feature | Hub Reduction Driving Axle | Hub Reduction Driving Axle | Driving Axle | Driving Axle |
| Suspension | ||||
| Front Suspension | Parabolic with stabilizer | Parabolic with stabilizer | Parabolic with stabilizer | Parabolic with stabilizer |
| Rear Suspension | Parabolic with stabilizer | Parabolic with stabilizer | Parabolic with stabilizer | Parabolic with stabilizer |
| Brake | ||||
| Main brake | Full air, S-cam, dual circuit ABS | Full air, S-cam, dual circuit ABS | Full air, S-cam, dual circuit ABS | Full air, S-cam, dual circuit ABS |
| Additional brake | Exhaust brake | Exhaust brake | Exhaust brake | Exhaust brake |
| Wheel & tyre | ||||
| Wheel Size | 9 | 9 | 9 | 9 |
| Tyre size | 315/80R22.5 20PR | 315/80R22.5 20PR | 315/80R22.5 20PR | 315/80R22.5 20PR |
| Type | Tubeless | Tubeless | Tubeless | Tubeless |
| Loading Capacity (kg) | 4125 | 4125 | 4125 | 4125 |
| Performance | ||||
| Max. speed (km/h) | 104 | 104 | 104 | 104 |
| Accu | ||||
| Power/ kekuatan | 2x12V, 160 Ah. low maintenance | 2x12V, 160 Ah. low maintenance | 2x12V, 160 Ah. low maintenance | 2x12V, 160 Ah. low maintenance |
| Clutch | ||||
| Type | Dry-single plate, hydraulic actuated control with servo assistance | |||
| Diameter (mm) | 395 | 395 | 395 | 395 |
| Fuel Tank | ||||
| Volume (liter) | 280 ltr. Steel | 280 ltr. Steel | 280 ltr. Steel | 280 ltr. Steel |
| Dimension | ||||
| Wheelbasae WB (mm) | 4000+1450 | 4000+1450 | 4000+1450 | 4000+1450 |
| Total lenght L (mm) | 8,650/ 8,850 | 8,650/ 8,850 | 8,650/ 8,850 | 8,650/ 8,850 |
| Total width W (mm) | 2,550 | 2,550 | 2,550 | 2,550 |
| Total height H (mm) | 3,450 | 3,450 | 3,450 | 3,450 |
| Front overhang FOH (mm) | 1,500 | 1,500 | 1,500 | 1,500 |
| Rear overhang ROH (mm) | 1,700/ 1,900 | 1,700/ 1,900 | 1,700/ 1,900 | 1,700/ 1,900 |
| Chassis weight | ||||
| Kerb weight (kg) | 10,500 | 10,500 | 10,500 | 10,500 |
| Plated GVW (kg) | 32,000 | 32,000 | 32,000 | 32,000 |
| Design GVW (kg) | 36,400 | 36,400 | 36,400 | 36,400 |
| GCW (kg) | - | - | - | - |
| Box | ||||
| Box lenght BL (mm) | 5,800/ 6,000 | 5,800/ 6,000 | 5,800/ 6,000 | 5,800/ 6,000 |
| Box width BW (mm) | 2300 | 2300 | 2300 | 2300 |
| Box height BH (mm) | 1200 | 1200 | 1200 | 1200 |
