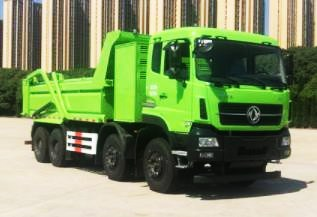

31T Mack Shift Tipper

Chassis parameters		Notes
Name	8×4Pure electric chassis
Model Announcement	DFH3310AEV
Driver's cab	D310 Row half standard cab
Wheelbase (mm)	1850+3200+1350
Curb weight	13.9T
Total storage capacity	422.88kWh
Nominal voltage/capacity	618.24V/684Ah
Battery	Ningde Shidai Lithium Iron Phosphate (6 boxes of 155wh/kg)	Water cooled, 5-year warranty
Integrated controller	Huichuan Five in One Controller	5-year warranty
Motor rated/peak power	250kw/360kw (Zhonglian Motor)	5-year warranty
Transmission	Fast 6-speed AMT	5-year warranty
Rear axle	Dongfeng wheel reduction axle, drum brake, withAxle differential lock, wheel differential lock
Maximum Climbing Slope	50%
Range	327km(GBIsokinetic method)
